在日常的开发工作中，我们经常需要处理和调试JSON数据。一个美观且功能丰富的JSON格式化工具不仅能提高开发效率，还能帮助我们更好地理解复杂的数据结构。本文将介绍如何使用 HTML、CSS 和 JavaScript 实现一个功能完整的JSON格式化工具。效果演示

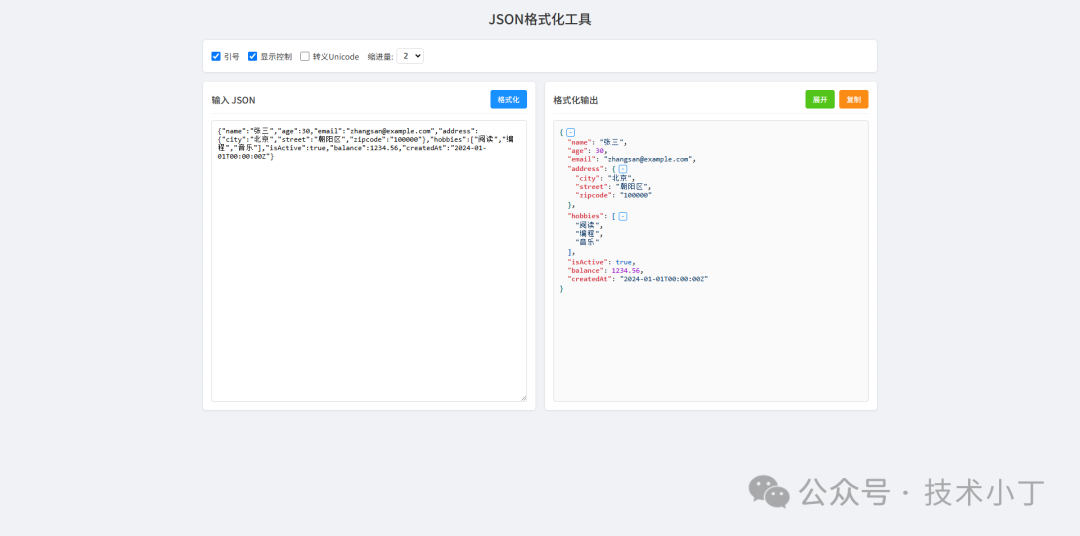

这款JSON格式化工具具有直观的用户界面，分为左右两个面板：左侧为原始JSON输入区，右侧为格式化后的输出区。用户可以在左侧输入任意JSON字符串，点击"格式化"按钮后，右侧将展示经过美化和着色的JSON结构。该工具还提供了一些自定义选项，包括引号显示、折叠控制、Unicode转义以及缩进调整等功能，极大地提升了JSON数据的可读性和可用性。
页面结构
配置面板
位于页面顶部的配置面板允许用户自定义格式化选项。配置选项包括：
<div class="config-panel"> <div class="config-options-list"> <div class="config-option-item"> <input type="checkbox" id="toggleQuoteKeys" checked> <label for="toggleQuoteKeys">引号</label> </div> <div class="config-option-item"> <input type="checkbox" id="toggleCollapsibleView" checked> <label for="toggleCollapsibleView">显示控制</label> </div> <div class="config-option-item"> <input type="checkbox" id="toggleUnicodeEscape"> <label for="toggleUnicodeEscape">转义Unicode</label> </div> <div class="config-option-item"> <label for="selectIndentationSize">缩进量:</label> <select id="selectIndentationSize"> <option value="1">1</option> </select> </div> </div></div>
主操作区域
主操作区域采用两列布局，分别用于输入原始JSON和显示格式化结果。左侧面板包含一个文本域用于输入JSON数据和一个“格式化”按钮；右侧面板展示了格式化结果，并提供了"展开"和"复制"功能按钮。<div class="main-layout"> <div class="panel-container"> <div class="panel-header-section"> <h2 class="panel-title-text">输入 JSON</h2> <div class="action-buttons"> <button class="btn-primary" id="btnFormatJson">格式化</button> </div> </div> <textarea id="textareaRawJson" placeholder="在此输入 JSON 数据..."></textarea> </div> <div class="panel-container"> <div class="panel-header-section"> <h2 class="panel-title-text">格式化输出</h2> <div class="action-buttons"> <button class="btn-secondary" id="btnExpandAll">展开</button> <button class="btn-copy" id="btnCopyFormatted">复制</button> </div> </div> <pre id="preFormattedOutput"></pre> </div></div>
核心功能实现
JSON 格式化核心逻辑
performJsonFormatting 函数是整个工具的核心，负责解析和格式化JSON数据。该函数首先尝试解析输入的JSON字符串，如果解析失败则尝试进一步处理，最终调用 formatJsonValue 进行递归格式化。function performJsonFormatting(json) { try { let obj; if (typeof json === 'object') { obj = json; } else { if (json === "") { document.getElementById('preFormattedOutput').innerHTML = ""; isJsonFormatted = false; return; }
try { obj = JSON.parse(json); } catch (parseError) { try { const tempStr = `"${json}"`; const unescapedStr = JSON.parse(tempStr); obj = JSON.parse(unescapedStr); } catch (secondError) { throw parseError; } } } document.getElementById('preFormattedOutput').innerHTML = formatJsonValue(obj, 0, false, false, false); isJsonFormatted = true; attachCollapseEvents(); } catch (e) { alert("JSON数据格式不正确:\n" + e.message); document.getElementById('preFormattedOutput').innerHTML = ""; isJsonFormatted = false; }}
递归格式化函数
formatJsonValue 函数根据数据类型递归处理JSON结构。对于对象和数组类型，函数还会根据配置决定是否添加折叠控制元素。function formatJsonValue(obj, indent, addComma, isArray, isPropertyContent) { let html = ""; const comma = addComma ? `<span class="json-comma-symbol">,</span>` : ""; const type = typeof obj;
if (Array.isArray(obj)) { if (obj.length === 0) { html += generateIndentedLine(indent, `<span class="json-array-bracket">[ ]</span>${comma}`, isPropertyContent); } else { const sectionId = collapsibleSectionId++; const isCollapsible = formattingOptions.isCollapsible;
if (isCollapsible) { html += generateIndentedLine(indent, `<span class="brace-line"><span class="json-array-bracket">[</span><span class="toggle-wrapper"><span class="toggle-icon" data-target="content-${sectionId}">-</span></span></span>`, isPropertyContent); html += `<span id="content-${sectionId}" class="collapsible-content">`; } else { html += generateIndentedLine(indent, `<span class="json-array-bracket">[</span>`, isPropertyContent); } for (let i = 0; i < obj.length; i++) { html += formatJsonValue(obj[i], indent + 1, i < (obj.length - 1), true, false); } if (isCollapsible) html += `</span>`; html += generateIndentedLine(indent, isCollapsible ? `<span class="brace-line"><span class="json-array-bracket">]</span>${comma}</span>` : `<span class="json-array-bracket">]</span>${comma}`); } } else if (obj === null) { html += formatPrimitiveValue("null", "", comma, indent, isArray, "null"); } else if (type === 'object') { const keys = Object.keys(obj); if (keys.length === 0) { html += generateIndentedLine(indent, `<span class="json-object-bracket">{ }</span>${comma}`, isPropertyContent); } else { const sectionId = collapsibleSectionId++; const isCollapsible = formattingOptions.isCollapsible;
if (isCollapsible) { html += generateIndentedLine(indent, `<span class="brace-line"><span class="json-object-bracket">{</span><span class="toggle-wrapper"><span class="toggle-icon" data-target="content-${sectionId}">-</span></span></span>`, isPropertyContent); html += `<span id="content-${sectionId}" class="collapsible-content">`; } else { html += generateIndentedLine(indent, `<span class="json-object-bracket">{</span>`, isPropertyContent); }
for (let i = 0; i < keys.length; i++) { const key = keys[i]; const quote = formattingOptions.quoteKeys ? '"' : ''; const hasMore = i < keys.length - 1; html += generateIndentedLine(indent + 1, `<span class="json-key-name">${quote}${key}${quote}</span>: ${formatJsonValue(obj[key], indent + 1, hasMore, false, true)}`); } if (isCollapsible) html += `</span>`; html += generateIndentedLine(indent, isCollapsible ? `<span class="brace-line"><span class="json-object-bracket">}</span>${comma}</span>` : `<span class="json-object-bracket">}</span>${comma}`); } } else if (type === 'string') { html += formatPrimitiveValue(obj, '"', comma, indent, isArray, "string"); } else if (type === 'number') { html += formatPrimitiveValue(obj, "", comma, indent, isArray, "number"); } else if (type === 'boolean') { html += formatPrimitiveValue(obj, "", comma, indent, isArray, "boolean"); } return html;}
折叠功能实现
function attachCollapseEvents() { if (!isJsonFormatted) return; document.querySelectorAll('.toggle-icon').forEach(function(icon) { icon.addEventListener('click', function(e) { e.preventDefault(); const targetId = icon.getAttribute('data-target'); const content = document.getElementById(targetId);
if (content.classList.contains('hidden')) { content.classList.remove('hidden'); icon.textContent = '-'; } else { content.classList.add('hidden'); icon.textContent = '+'; } }); });}
扩展建议
完整代码
git地址：https://gitee.com/ironpro/hjdemo/blob/master/json-formater/index.html<!DOCTYPE html><html lang="zh-CN"><head> <meta charset="utf-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>JSON格式化工具</title> <style> * { margin: 0; padding: 0; box-sizing: border-box; } body { background-color: #f0f2f5; padding: 15px; color: #333; } .container { max-width: 1200px; margin: 0 auto; } h1 { text-align: center; color: #333; margin-bottom: 20px; font-size: 24px; font-weight: 500; } .config-panel { background: #ffffff; border: 1px solid #e1e4e8; border-radius: 6px; padding: 15px; margin-bottom: 15px; box-shadow: 0 1px 3px rgba(0, 0, 0, 0.05); } .config-options-list { display: flex; gap: 15px; flex-wrap: wrap; } .config-option-item { display: flex; align-items: center; gap: 6px; } input[type="checkbox"] { width: 16px; height: 16px; cursor: pointer; } label { cursor: pointer; user-select: none; font-size: 14px; } .main-layout { display: grid; grid-template-columns: 1fr 1fr; gap: 15px; margin-bottom: 15px; } .panel-container { background: #ffffff; border: 1px solid #e1e4e8; border-radius: 6px; padding: 15px; display: flex; flex-direction: column; height: 100%; box-shadow: 0 1px 3px rgba(0, 0, 0, 0.05); } .panel-header-section { display: flex; justify-content: space-between; align-items: center; margin-bottom: 14px; padding-bottom: 8px; border-bottom: 1px solid #f0f0f0; } .panel-title-text { font-size: 16px; font-weight: 500; color: #333; } .action-buttons { display: flex; gap: 8px; } button { padding: 6px 14px; border: 1px solid #d9d9d9; border-radius: 4px; background: #ffffff; color: #333; font-size: 13px; cursor: pointer; transition: all 0.2s ease; } .btn-primary { border-color: #1890ff; background: #1890ff; color: white; } .btn-primary:hover { background: #40a9ff; border-color: #40a9ff; } .btn-secondary { border-color: #52c41a; background: #52c41a; color: white; } .btn-secondary:hover { background: #73d13d; border-color: #73d13d; } .btn-copy { border-color: #fa8c16; background: #fa8c16; color: white; } .btn-copy:hover { background: #faad14; border-color: #faad14; } textarea { width: 100%; flex: 1; padding: 10px; border: 1px solid #d9d9d9; border-radius: 4px; font-family: 'Consolas', 'Monaco', 'Courier New', monospace; font-size: 13px; resize: vertical; height: 500px; } #preFormattedOutput { background-color: #fafafa; padding: 10px; border: 1px solid #d9d9d9; border-radius: 4px; height: 500px; white-space: pre-wrap; word-wrap: break-word; word-break: break-all; max-width: 100%; font-family: 'Consolas', 'Monaco', 'Courier New', monospace; font-size: 13px; overflow-y: auto; } .json-object-bracket { color: #006d6d;font-weight: bold; } .json-array-bracket { color: #005cc5;font-weight: bold; } .json-key-name { color: #d73a49;font-weight: bold; } .json-string-value {color: #032f62;} .json-number-value {color: #9900cc;} .json-boolean-value {color: #005cc5;} .json-null-value {color: #005cc5;} .json-comma-symbol { color: #333; font-weight: bold; } .toggle-wrapper { display: inline-block; vertical-align: top; margin-left: 5px; } .toggle-icon { cursor: pointer; user-select: none; display: inline-block; width: 15px; color: #1890ff; font-weight: bold; border: 1px solid #1890ff; border-radius: 3px; text-align: center; font-size: 14px; line-height: 13px; } .collapsible-content { display: block; } .hidden { display: none; } .brace-line { line-height: 1.5; white-space: nowrap; } select { padding: 4px 8px; border: 1px solid #d9d9d9; border-radius: 4px; background-color: #fff; font-size: 13px; outline: none; cursor: pointer; } select:focus { border-color: #1890ff; } .toast-notification { position: fixed; top: 15px; right: 15px; background-color: #52c41a; color: white; padding: 8px 16px; border-radius: 4px; z-index: 1000; display: none; font-size: 13px; box-shadow: 0 2px 8px rgba(0, 0, 0, 0.15); } </style></head><body><div class="container"> <h1>JSON格式化工具</h1>
<div class="config-panel"> <div class="config-options-list"> <div class="config-option-item"> <input type="checkbox" id="toggleQuoteKeys" checked> <label for="toggleQuoteKeys">引号</label> </div> <div class="config-option-item"> <input type="checkbox" id="toggleCollapsibleView" checked> <label for="toggleCollapsibleView">显示控制</label> </div> <div class="config-option-item"> <input type="checkbox" id="toggleUnicodeEscape"> <label for="toggleUnicodeEscape">转义Unicode</label> </div> <div class="config-option-item"> <label for="selectIndentationSize">缩进量:</label> <select id="selectIndentationSize"> <option value="1">1</option> <option value="2" selected>2</option> <option value="3">3</option> <option value="4">4</option> <option value="5">5</option> <option value="6">6</option> </select> </div> </div> </div>
<div class="main-layout"> <div class="panel-container"> <div class="panel-header-section"> <h2 class="panel-title-text">输入 JSON</h2> <div class="action-buttons"> <button class="btn-primary" id="btnFormatJson">格式化</button> </div> </div> <textarea id="textareaRawJson" placeholder="在此输入 JSON 数据..."></textarea> </div> <div class="panel-container"> <div class="panel-header-section"> <h2 class="panel-title-text">格式化输出</h2> <div class="action-buttons"> <button class="btn-secondary" id="btnExpandAll">展开</button> <button class="btn-copy" id="btnCopyFormatted">复制</button> </div> </div> <pre id="preFormattedOutput"></pre> </div> </div>
<div id="toastNotification" class="toast-notification">已复制到剪贴板</div></div><script> let isJsonFormatted = false; let collapsibleSectionId = 0; let indentationString = ' '; let formattingOptions = { tabSize: 2, quoteKeys: true, isCollapsible: true, escapeUnicode: true };
function generateIndentedLine(indent, data, isPropertyContent) { const tabs = !isPropertyContent ? indentationString.repeat(indent) : ""; return tabs + (data && data.length > 0 && data.charAt(data.length - 1) !== "\n" ? data + "\n" : data); }
function formatPrimitiveValue(literal, quote, comma, indent, isArray, style) { if (typeof literal === 'string' && formattingOptions.escapeUnicode) { literal = literal.replace(/[\u007F-\uFFFF]/g, function(chr) { return "\\u" + ("0000" + chr.charCodeAt(0).toString(16)).substr(-4); }); } if (typeof literal === 'string') { literal = literal.replace(/</g, '<').replace(/>/g, '>'); } const str = `<span class="json-${style}-value">${quote}${literal}${quote}</span>${comma}`; return isArray ? generateIndentedLine(indent, str) : str; }
function formatJsonValue(obj, indent, addComma, isArray, isPropertyContent) { let html = ""; const comma = addComma ? `<span class="json-comma-symbol">,</span>` : ""; const type = typeof obj;
if (Array.isArray(obj)) { if (obj.length === 0) { html += generateIndentedLine(indent, `<span class="json-array-bracket">[ ]</span>${comma}`, isPropertyContent); } else { const sectionId = collapsibleSectionId++; const isCollapsible = formattingOptions.isCollapsible;
if (isCollapsible) { html += generateIndentedLine(indent, `<span class="brace-line"><span class="json-array-bracket">[</span><span class="toggle-wrapper"><span class="toggle-icon" data-target="content-${sectionId}">-</span></span></span>`, isPropertyContent); html += `<span id="content-${sectionId}" class="collapsible-content">`; } else { html += generateIndentedLine(indent, `<span class="json-array-bracket">[</span>`, isPropertyContent); } for (let i = 0; i < obj.length; i++) { html += formatJsonValue(obj[i], indent + 1, i < (obj.length - 1), true, false); } if (isCollapsible) html += `</span>`; html += generateIndentedLine(indent, isCollapsible ? `<span class="brace-line"><span class="json-array-bracket">]</span>${comma}</span>` : `<span class="json-array-bracket">]</span>${comma}`); } } else if (obj === null) { html += formatPrimitiveValue("null", "", comma, indent, isArray, "null"); } else if (type === 'object') { const keys = Object.keys(obj); if (keys.length === 0) { html += generateIndentedLine(indent, `<span class="json-object-bracket">{ }</span>${comma}`, isPropertyContent); } else { const sectionId = collapsibleSectionId++; const isCollapsible = formattingOptions.isCollapsible;
if (isCollapsible) { html += generateIndentedLine(indent, `<span class="brace-line"><span class="json-object-bracket">{</span><span class="toggle-wrapper"><span class="toggle-icon" data-target="content-${sectionId}">-</span></span></span>`, isPropertyContent); html += `<span id="content-${sectionId}" class="collapsible-content">`; } else { html += generateIndentedLine(indent, `<span class="json-object-bracket">{</span>`, isPropertyContent); }
for (let i = 0; i < keys.length; i++) { const key = keys[i]; const quote = formattingOptions.quoteKeys ? '"' : ''; const hasMore = i < keys.length - 1; html += generateIndentedLine(indent + 1, `<span class="json-key-name">${quote}${key}${quote}</span>: ${formatJsonValue(obj[key], indent + 1, hasMore, false, true)}`); } if (isCollapsible) html += `</span>`; html += generateIndentedLine(indent, isCollapsible ? `<span class="brace-line"><span class="json-object-bracket">}</span>${comma}</span>` : `<span class="json-object-bracket">}</span>${comma}`); } } else if (type === 'string') { html += formatPrimitiveValue(obj, '"', comma, indent, isArray, "string"); } else if (type === 'number') { html += formatPrimitiveValue(obj, "", comma, indent, isArray, "number"); } else if (type === 'boolean') { html += formatPrimitiveValue(obj, "", comma, indent, isArray, "boolean"); } return html; }
function performJsonFormatting(json) { try { let obj; if (typeof json === 'object') { obj = json; } else { if (json === "") { document.getElementById('preFormattedOutput').innerHTML = ""; isJsonFormatted = false; return; }
try { obj = JSON.parse(json); } catch (parseError) { try { const tempStr = `"${json}"`; const unescapedStr = JSON.parse(tempStr); obj = JSON.parse(unescapedStr); } catch (secondError) { throw parseError; } } } document.getElementById('preFormattedOutput').innerHTML = formatJsonValue(obj, 0, false, false, false); isJsonFormatted = true; attachCollapseEvents(); } catch (e) { alert("JSON数据格式不正确:\n" + e.message); document.getElementById('preFormattedOutput').innerHTML = ""; isJsonFormatted = false; } }
function attachCollapseEvents() { if (!isJsonFormatted) return; document.querySelectorAll('.toggle-icon').forEach(function(icon) { icon.addEventListener('click', function(e) { e.preventDefault(); const targetId = icon.getAttribute('data-target'); const content = document.getElementById(targetId);
if (content.classList.contains('hidden')) { content.classList.remove('hidden'); icon.textContent = '-'; } else { content.classList.add('hidden'); icon.textContent = '+'; } }); }); }
function expandAllSections() { if (!isJsonFormatted) return; document.querySelectorAll('.collapsible-content').forEach(function(c) { c.classList.remove('hidden'); }); document.querySelectorAll('.toggle-icon').forEach(function(i) { i.textContent = '-'; }); }
document.addEventListener('DOMContentLoaded', function() { function collectFormattingOptions() { return { tabSize: parseInt(document.getElementById('selectIndentationSize').value), quoteKeys: document.getElementById('toggleQuoteKeys').checked, isCollapsible: document.getElementById('toggleCollapsibleView').checked, escapeUnicode: document.getElementById('toggleUnicodeEscape').checked }; }
function refreshFormattingDisplay() { const jsonText = document.getElementById('textareaRawJson').value; if (jsonText.trim() !== "" && isJsonFormatted) { formattingOptions = collectFormattingOptions(); indentationString = ' '.repeat(formattingOptions.tabSize); performJsonFormatting(jsonText); } }
document.getElementById('btnFormatJson').addEventListener('click', function() { const jsonText = document.getElementById('textareaRawJson').value; formattingOptions = collectFormattingOptions(); indentationString = ' '.repeat(formattingOptions.tabSize); performJsonFormatting(jsonText); });
['toggleQuoteKeys', 'toggleCollapsibleView', 'toggleUnicodeEscape'].forEach(function(id) { document.getElementById(id).addEventListener('change', refreshFormattingDisplay); }); document.getElementById('selectIndentationSize').addEventListener('change', refreshFormattingDisplay);
document.getElementById('btnExpandAll').addEventListener('click', function(e) { e.preventDefault(); expandAllSections(); });
document.getElementById('btnCopyFormatted').addEventListener('click', function() { const outputElement = document.getElementById('preFormattedOutput'); const tempElement = document.createElement('div'); tempElement.innerHTML = outputElement.innerHTML; tempElement.querySelectorAll('.toggle-icon, .toggle-wrapper').forEach(function(el) { el.remove(); }); const textToCopy = tempElement.innerText; if (!textToCopy.trim()) { alert('没有可复制的内容'); return; } navigator.clipboard.writeText(textToCopy).then(function() { const notification = document.getElementById('toastNotification'); notification.style.display = 'block'; setTimeout(function() { notification.style.display = 'none'; }, 2000); }).catch(function(err) { console.error('复制失败:', err); alert('复制失败，请手动复制'); }); }); document.getElementById('btnFormatJson').click(); });</script></body></html>
阅读原文：https://mp.weixin.qq.com/s/xL7wP78FWMQVKuTrD1T7oA
该文章在 2025/12/22 19:03:25 编辑过
